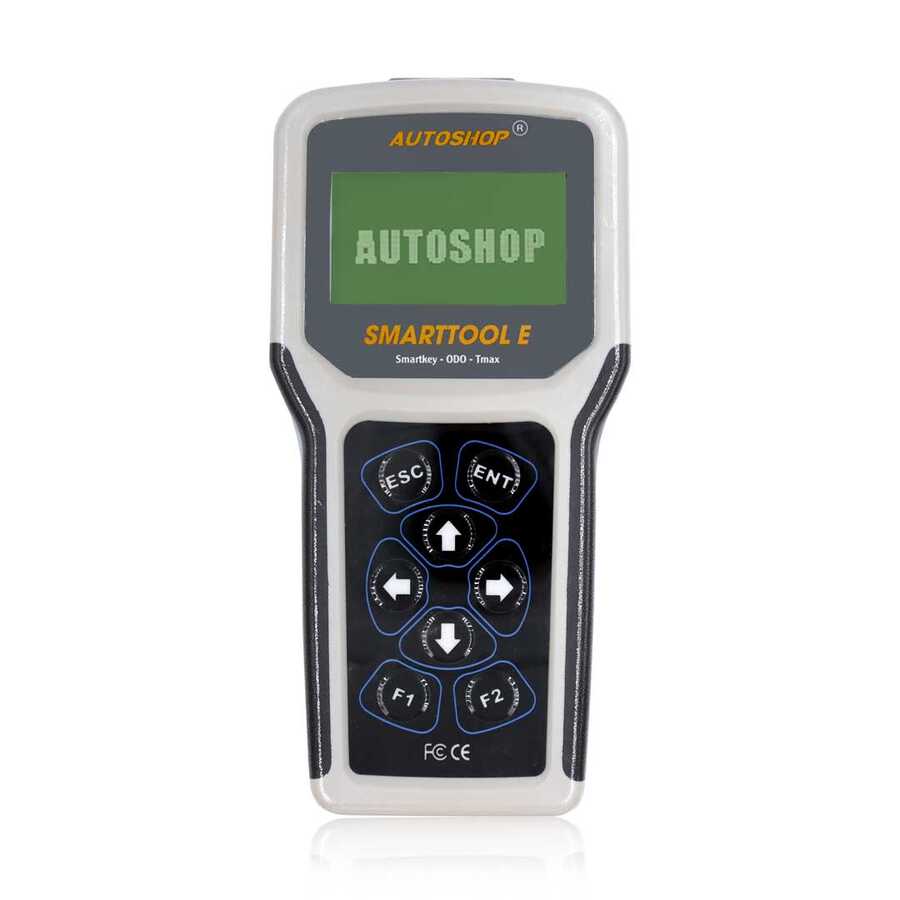

Autoshop Smarttool2 Smarttool ECO - Smart Key and ODO Motorbycle Motorbike Programmer
Notes:
This package doesn't include Yamaha Tmax license, you can purchase this licence separately, please contact us.
1. for Smart key/Keyless H-onda, Y-amaha and S-uzuki
Read KEYID from smart box
Read ECMID from smart box
Erase key lost
Erase the missing key code
Reflash EEPROM data of smart box
Register new keys in the all keys lost case.
Add key by key
Check the synchronization between key and smart box
Change ON / OFF key status
Sync smart box and ECM automatically
Replace new ECM
Register up to 6 keys at once bike Honda
List:
for HON-DA: AIRBLADE (2018-2020), CLICK 125i (2018-2020), LEAD 125 (2017-2020), PCX( 2016-2020), SH 125/150/300(2016-2020), SH MODE ( 2016-2020), VISION (2018-2020), VARIO 125/150 (2018-2020), X-ADV 750, FORZA 300 ( 2018-2020).
for YA-MAHA : AEROX (2018-2020), GRANF FILANO, JANUS ( 2018-2020), NVX(2018-2020) , QBIX, XMAX,T-MAX 530i, T-MAX DX, T-MAX SX SPORT, T-MAX IRON MAX.
for SU-ZUKI: RAIDER FI (2016-2020), GSX FI (2016-2020).
2. for PIAGGIO/ VESPA
Register the new keys in the all keys lost case.
Reset, erase all keys of IC / ECM.
Support register new keys.
Support list : AC13I, AC191, AC19I, AC20I, AC21I, AC23I, AC24I, AC25I, AC27I, AC32I, AC5I, AC8I, ACI600, AC601, ACI602, ACI603, ACII, AC2I, AC5I, AC8I, AC13I, MIU1, MIU2, MIU G3/RIU1, MIU4, PGU09, PGN04/PGS02/PGS06/PGT01.
3.Odometer adjustment
Read the current mileage
Correct odometer value of motorcycle dashboard.
Restore the original data
Automatic correct odometer
All moto, motobike Honda, Yamaha, Suzuki, Kawasaki and Piaggio
List of bikes:
for HON-DA:
Airblade (2013-2019)_EEPROM_93C66
Airblade 125/150 2020_EEPROM_242C04
Click (2013 -2020) _EEPROM_24C04
CBR 15DR/150/250/1000_EEPROM_24C04
Dylan 125_EEPROM_24C02
Msx 125/150_EEPROM_93C66
Future Neo_EEPROM_93C46
Lead 125 (2013-2020) _EEPROM_93C66
PCX( 2008-2019) _EEPROM_24C04
PCX HYBRID 2020 _EEPROM_24C04
SH 125/150/300(2015-2016) _EEPROM_93C56
SH 125/150(2017-2019) _EEPROM_93C66
SH 125/150 2020 _EEPROM_24C04
SH 300I(2008-2016) _EEPROM_93C66
SH 300I(2007) _EEPROM_93C56
SH Mode ( 2015-2020) _EEPROM_93C66
Sonic 125_EEPROM_93C66
Vario 125/150 (2013-2020) _EEPROM_24C04
Wave 125_EEPROM_93C46
Winner 150 _EEPROM_93C66
Winner X 2019_EEPROM_24c04
for YA-MAHA:
Aerox PIC16F1947 read and write EEPROM
Janus PIC16F1947 read and write EEPROM
Nvx PIC16F1947 read and write EEPROM
TFX PIC16F1947 read and write EEPROM
MSLAZ PIC16F1947 read and write EEPROM
Acruzo_EEPROM_93C66
Exciter 150 (2014-2017) _EEPROM_93C66
Exciter 150 (2018-2019) _EEPROM_93C66
Fz150/150i/FZ16_EEPROM_93C66
Grande_EEPROM_93C66
Novo LX/4_EEPROM_93C56
Novo SX/5_EEPROM_93C66
Qbix_EEPROM_93C56
R1/R15/RR15D_EEPROM_93C46
Free Go 2019_EEPROM_93c66
for PIAGGIO/VESPA:
Liberty( 2017-2019) _EEPROM_93C66
Primavera (2017-2019) _EEPROM_93C66
Sprint (2017-2019) _EEPROM_93C66
Liberty( 2014-2016)_MCU R5F
Primavera (2014-2016)_MCU R5F
Sprint (2014-2016)_MCU R5F
for SU-ZUKI:
An150_EEPROM_93C56
En 150_EEPROM_93C56
Raider (2012-2015) _EEPROM_93C66
Gsx ( 2009-2015) _EEPROM_93C66
Gsx Fi (2016-2019)_MCU R5F
Raider Fi( 2016-2019)_MCU R5F
for KA-WASAKI
:
Z1000R/Ninja_EEPROM_93C46
Z125, NINJA 250, VERSY 650, Z300, Z900
