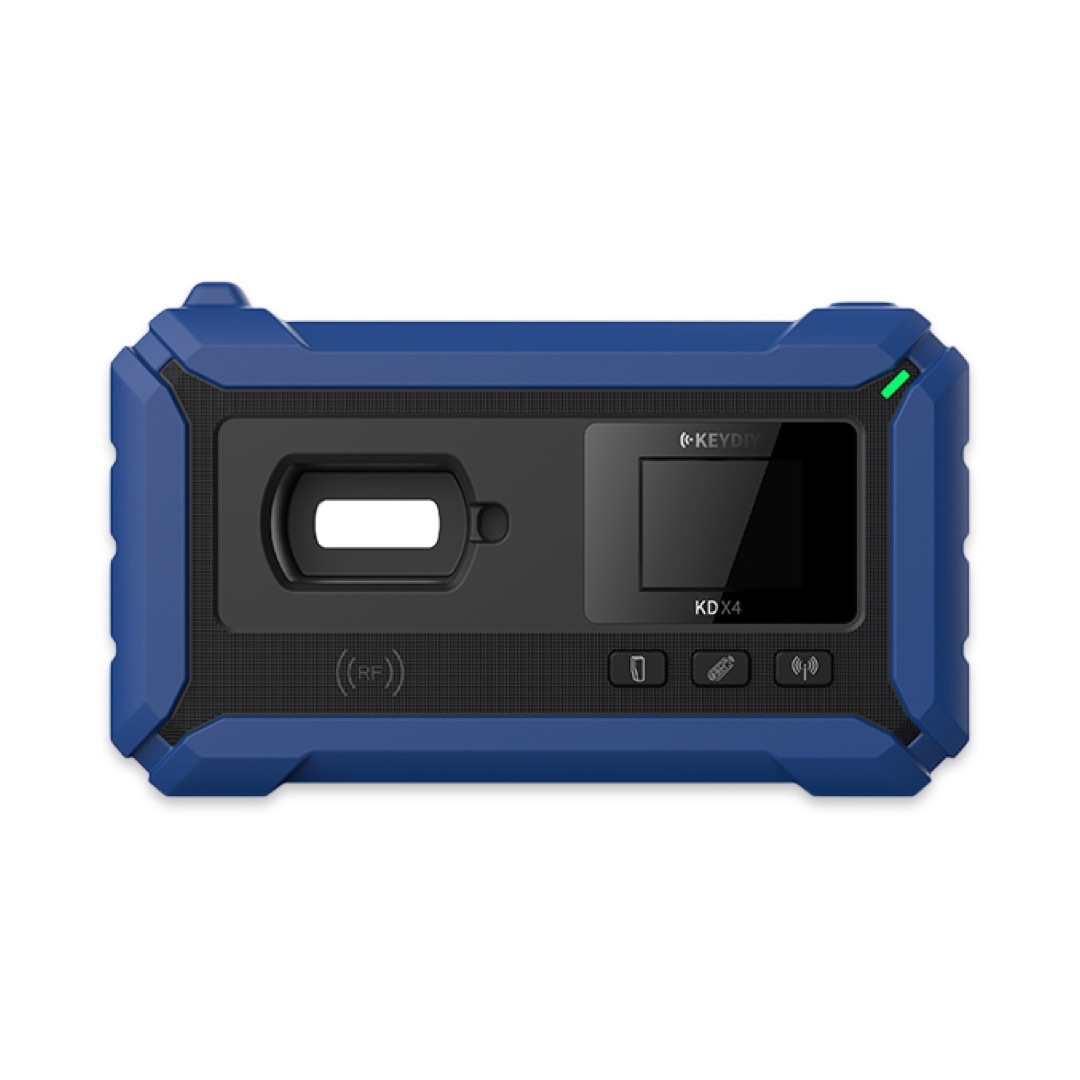

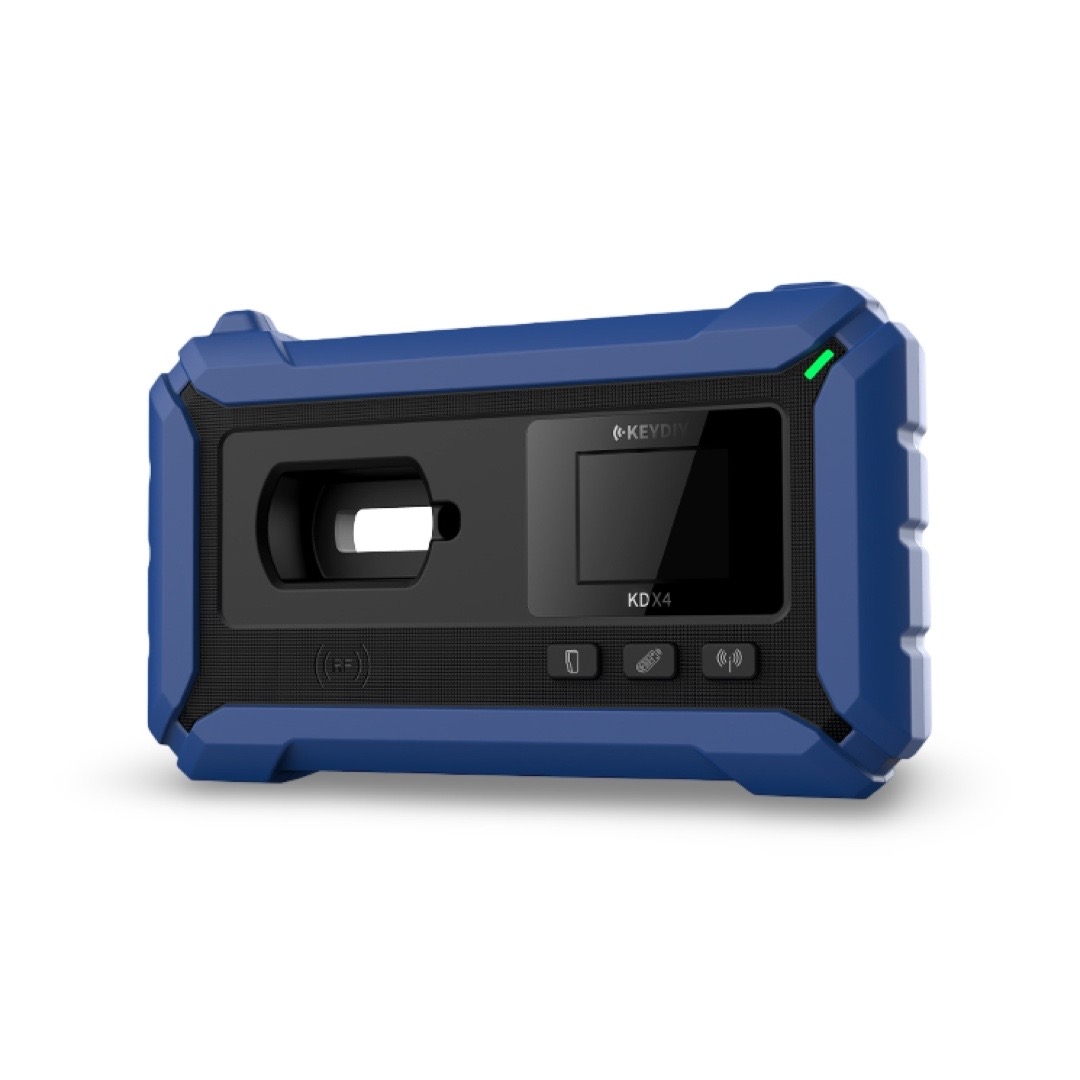

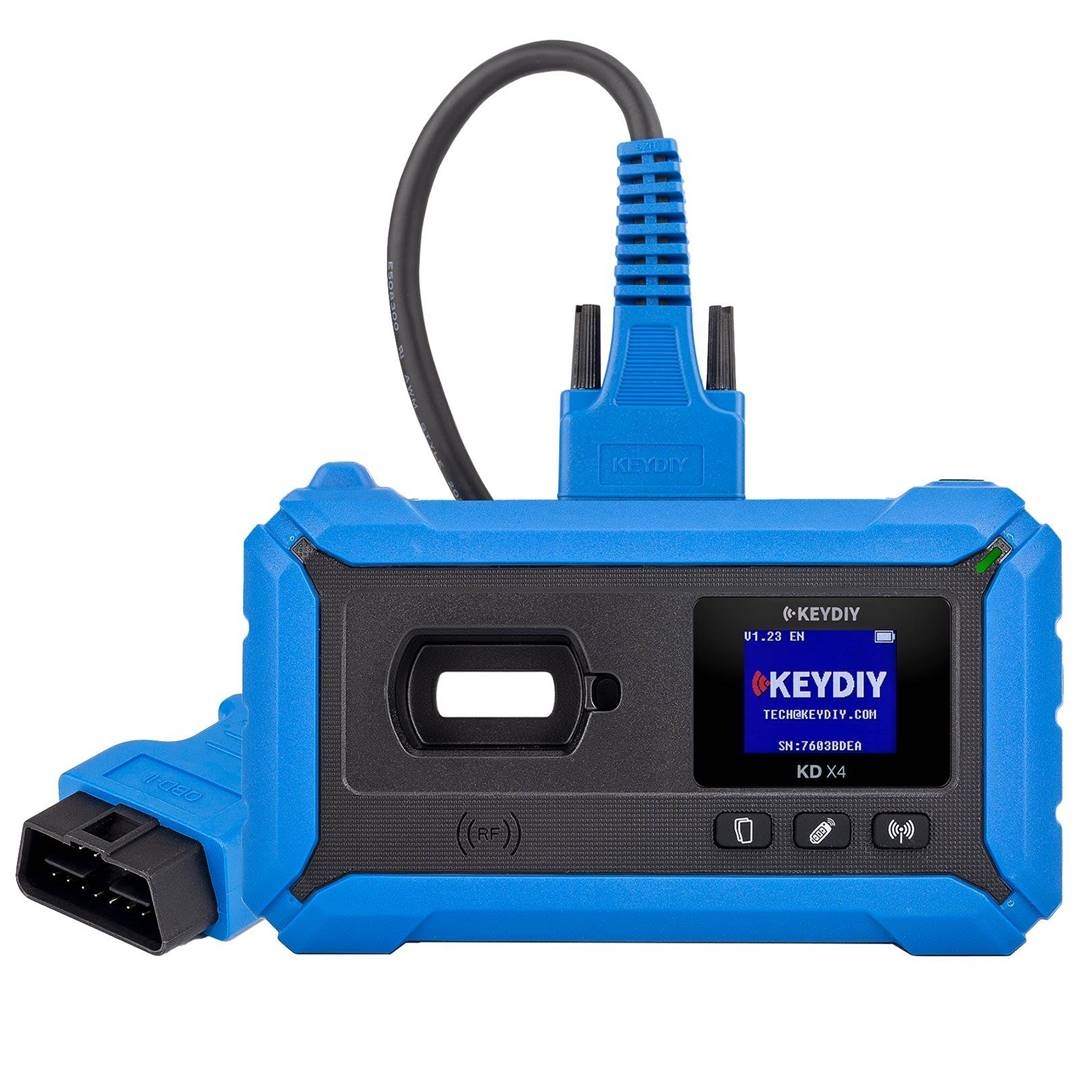

KEYDIY KD-X4 key programmer

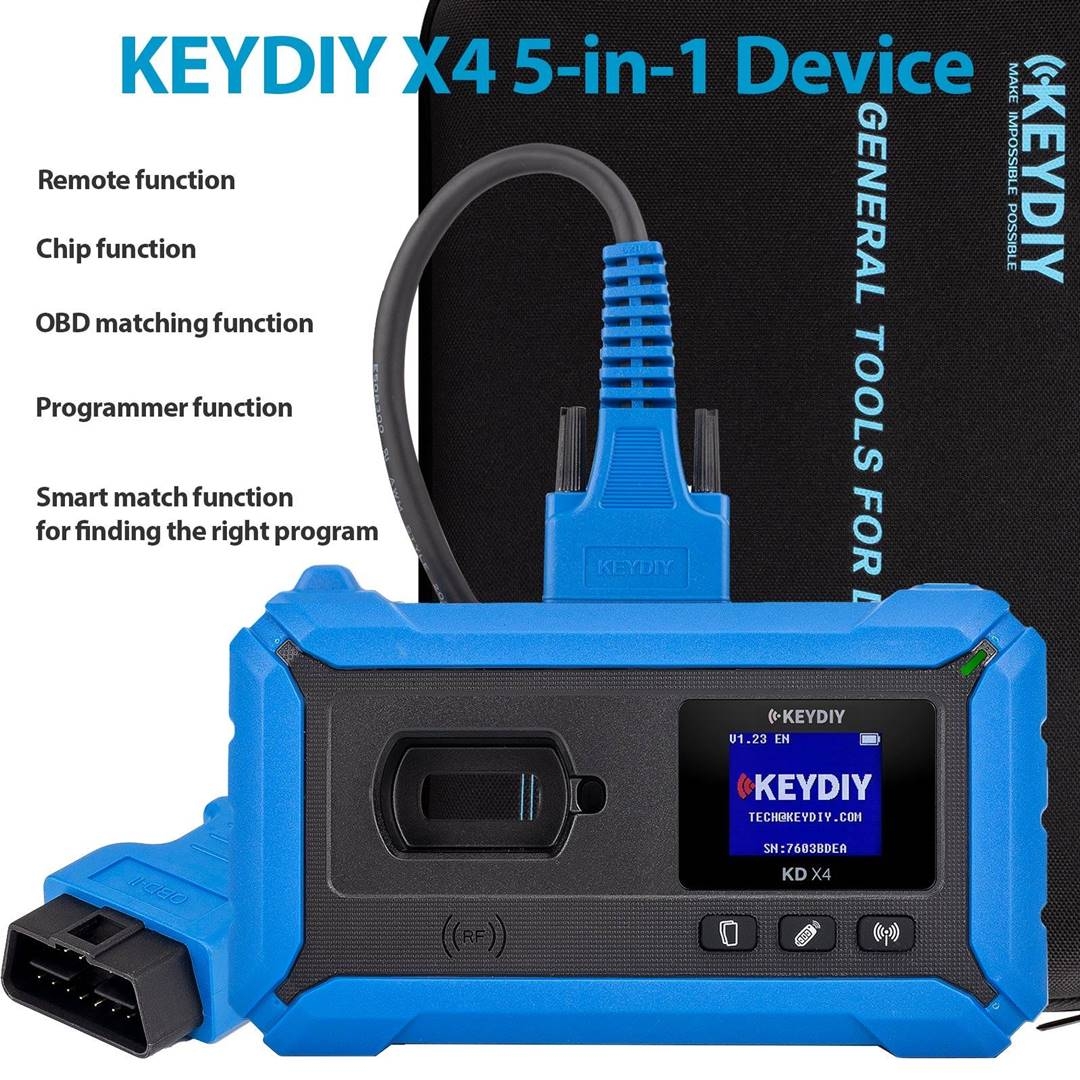

KD-X4 supports detection, generating, copy, programming, matching.
It can be operated alone pr connected to tablet, mobile phone or PC software.
language: Arabic, Korean, German, Spanish, English, Chinese and other 19 languages

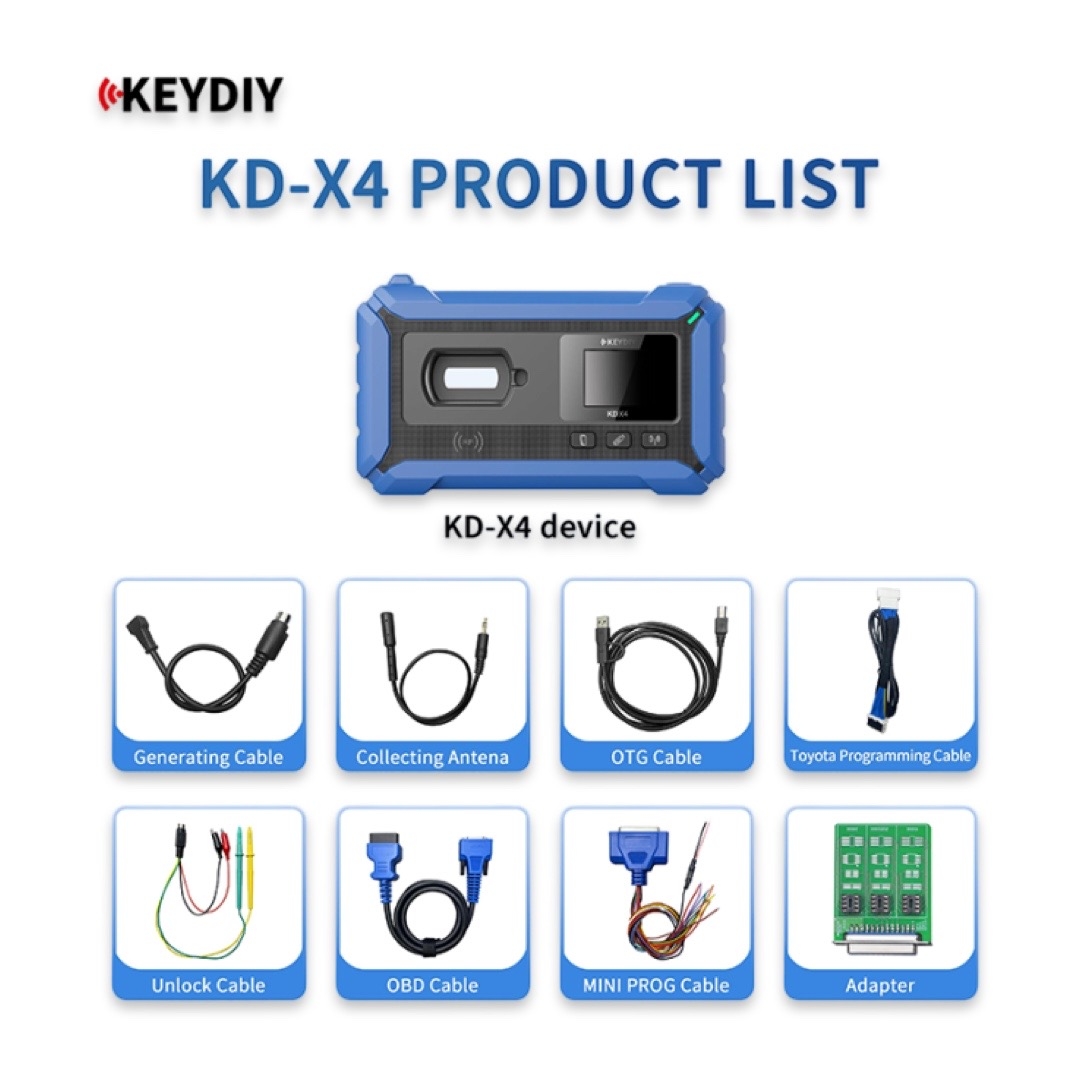

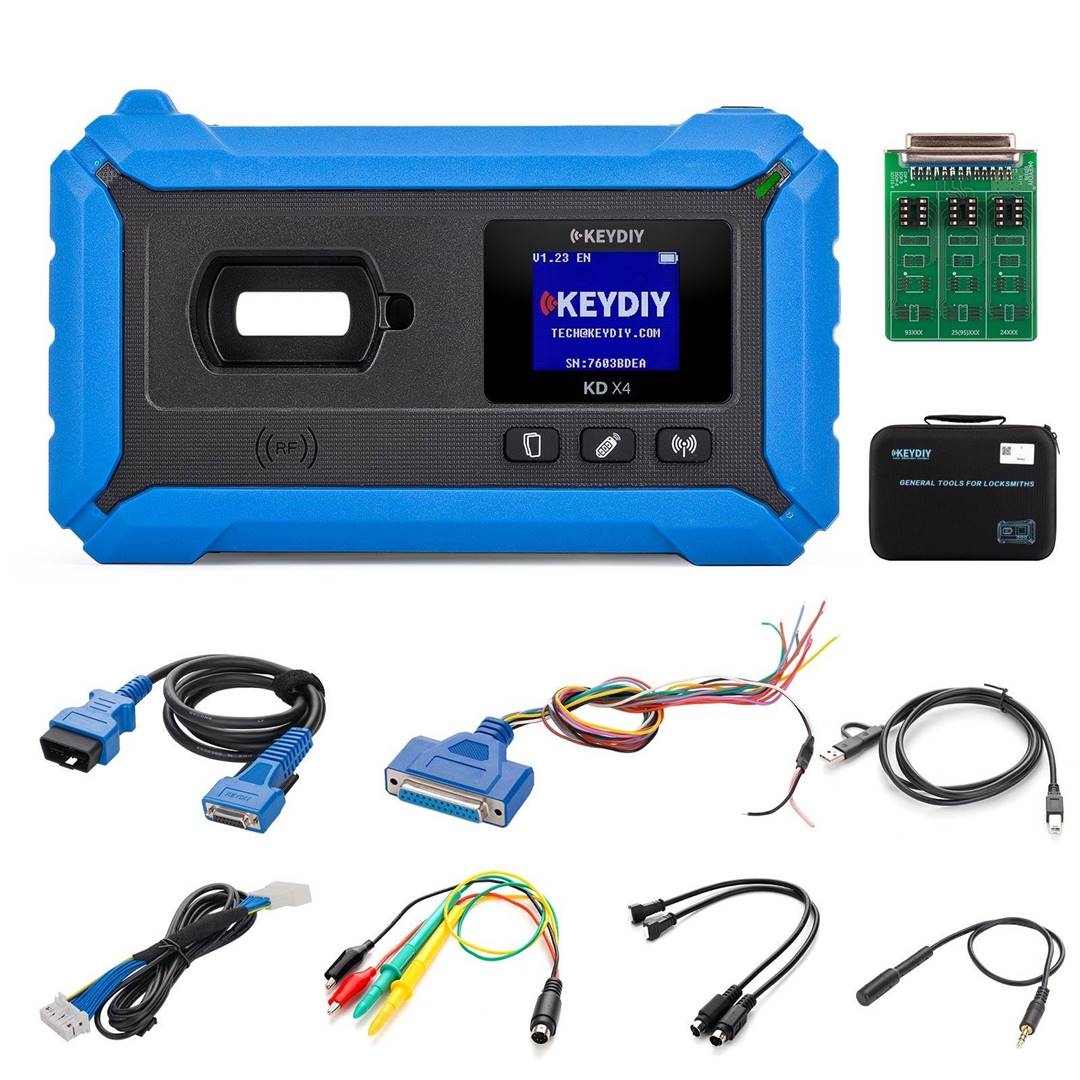

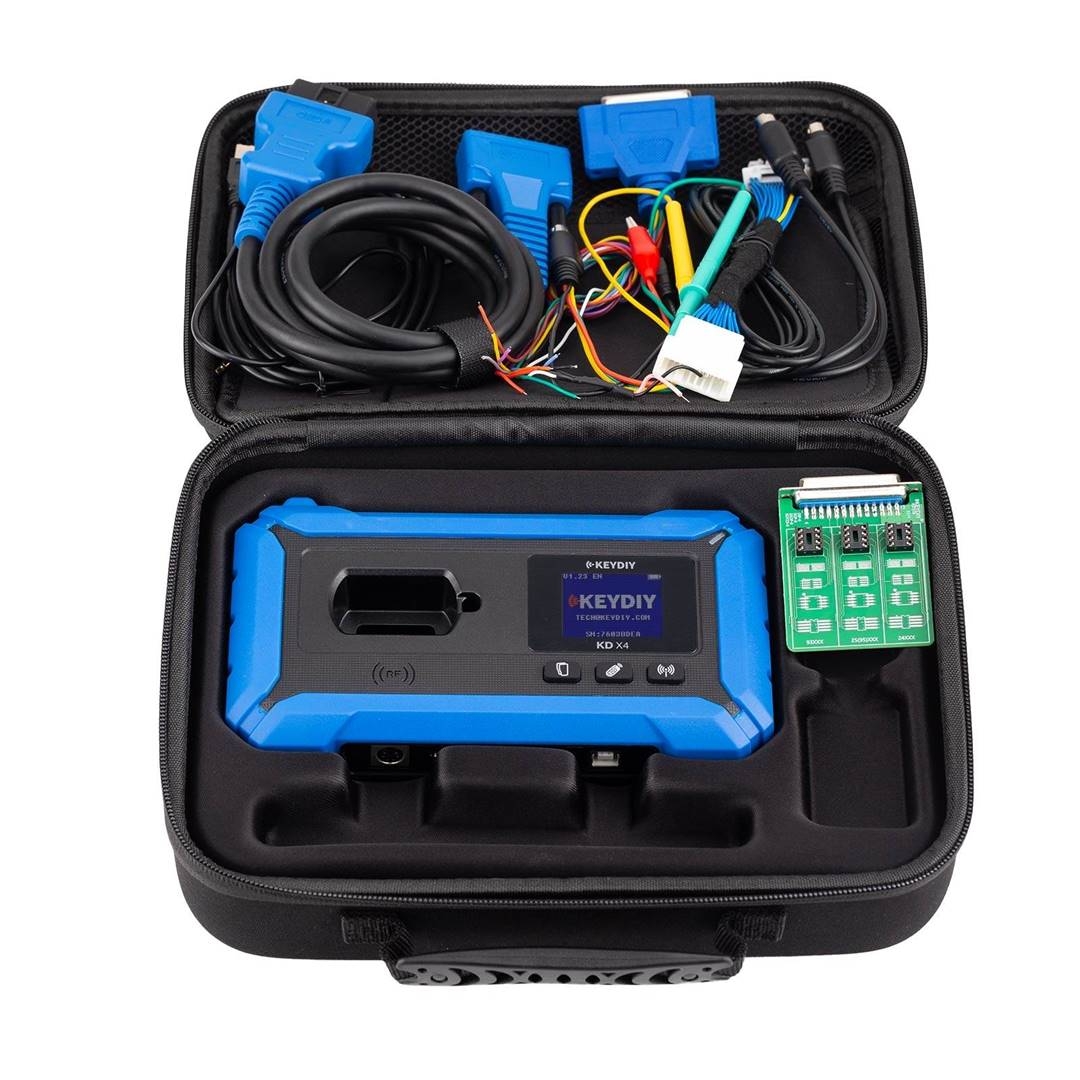

Package Contents:
KD-X4 device
OBD main cable
USB cable
Toyota adapter cable
Programmer adapter board
Programmer wiring cable
Remote control burning cable
Key unlocking cable
External acquisition antenna
Main Performance Parameters:
Battery Capacity: 3.7V, 2000mAh
Input Power: 5V/9V/12V, 2A
Size: 150 x 85 x 30 mm
Working Temperature: -10°C to 50°C
Connectivity: BLE, USB 2.0 (Type B)
Display: 2.8-inch color screen
Storage Temperature: -20°C to 60°C

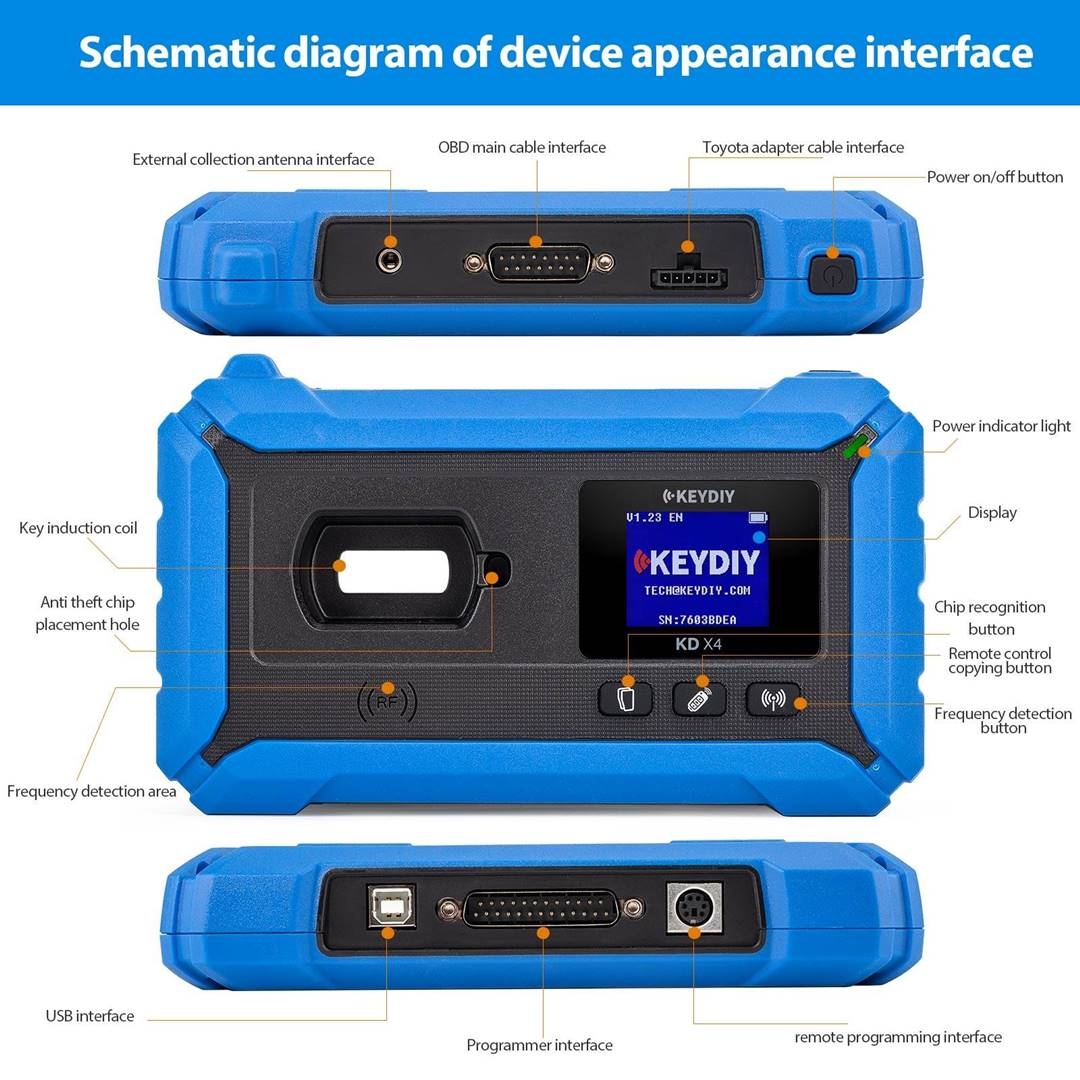

Button and Interface Function Description
- Power On/Off Button:
- In the off state, press and hold the power button for 2 seconds to turn on the device.
- When the device is on, press and hold the power button for 2 seconds to turn it off.
- Chip Recognition Button:
- Press to enter the chip detection function.
- Long press to access the function-switching menu, where you can select:
- Chip Recognition
- Ignition Coil Detection
- System Settings
- Remote Copy Button:
- Press to enter the remote normal copy function.
- Long press to access the function-switching menu, where you can select:
- Normal Copy
- Special Copy
- Remote Data Comparison
- Frequency Detection Button:
- Press to enter the frequency detection mode within 315MHz.
- Long press to access the function-switching menu, where you can select:
- Frequency Detection within 315MHz
- 433.92MHz Frequency Detection
- Battery Voltage Detection/Leakage Detection
(Refer to Figure 3 on the right)
- Key Induction Coil and IMMO Chip Placement Hole:
- Used for identifying and copying car key IMMO chips.
- Can also generate KD remotes wirelessly.
- Frequency Detection Area:
- Place the key in this area and press the remote control button to detect the frequency.
- Power Indicator Light:
- Power On Status: Indicator light flashes.
- Charging Status: Indicator light stays on and turns yellow.
- Fully Charged Status: Indicator light stays on and turns green.

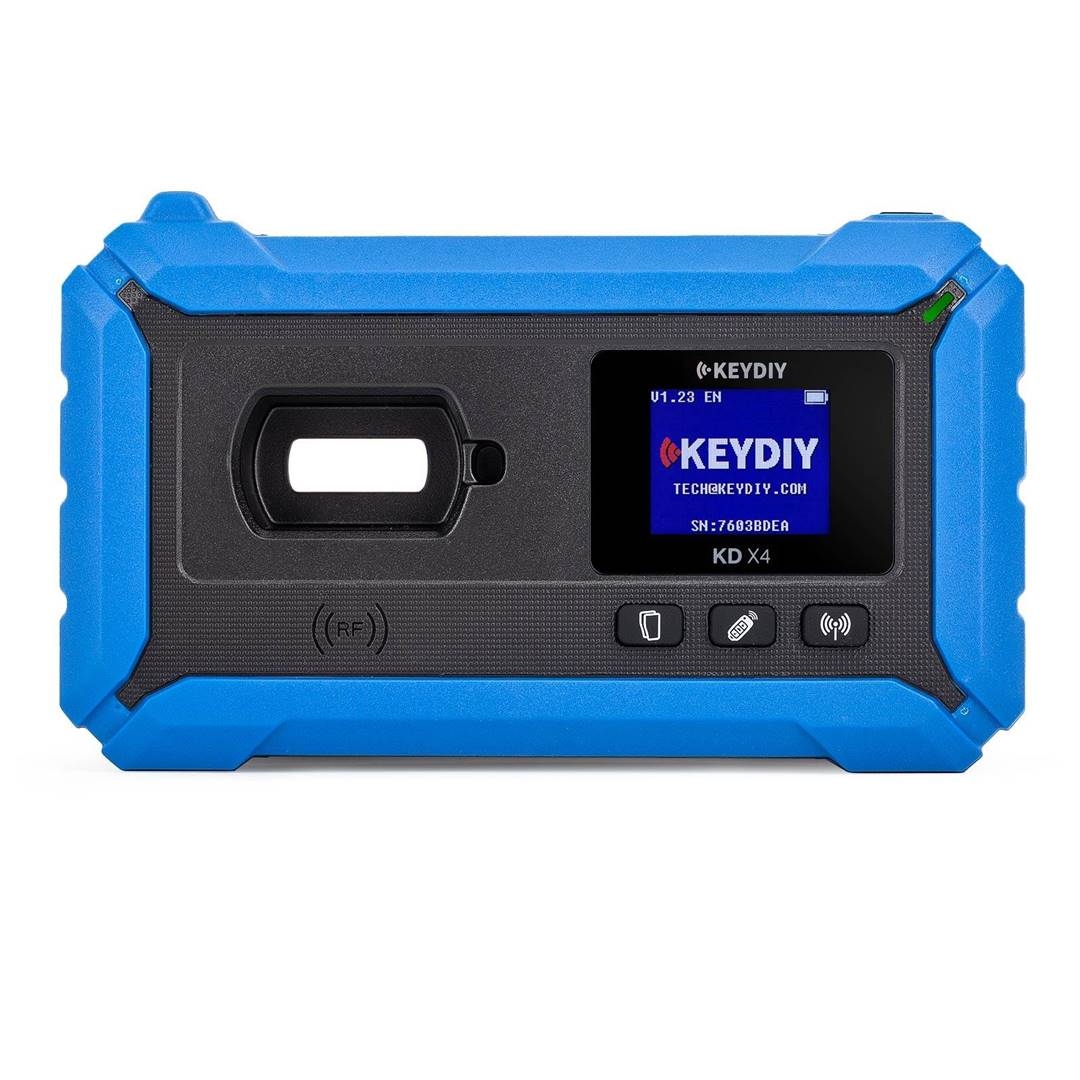

- Display Screen:
- Displays device information, key information, and more.

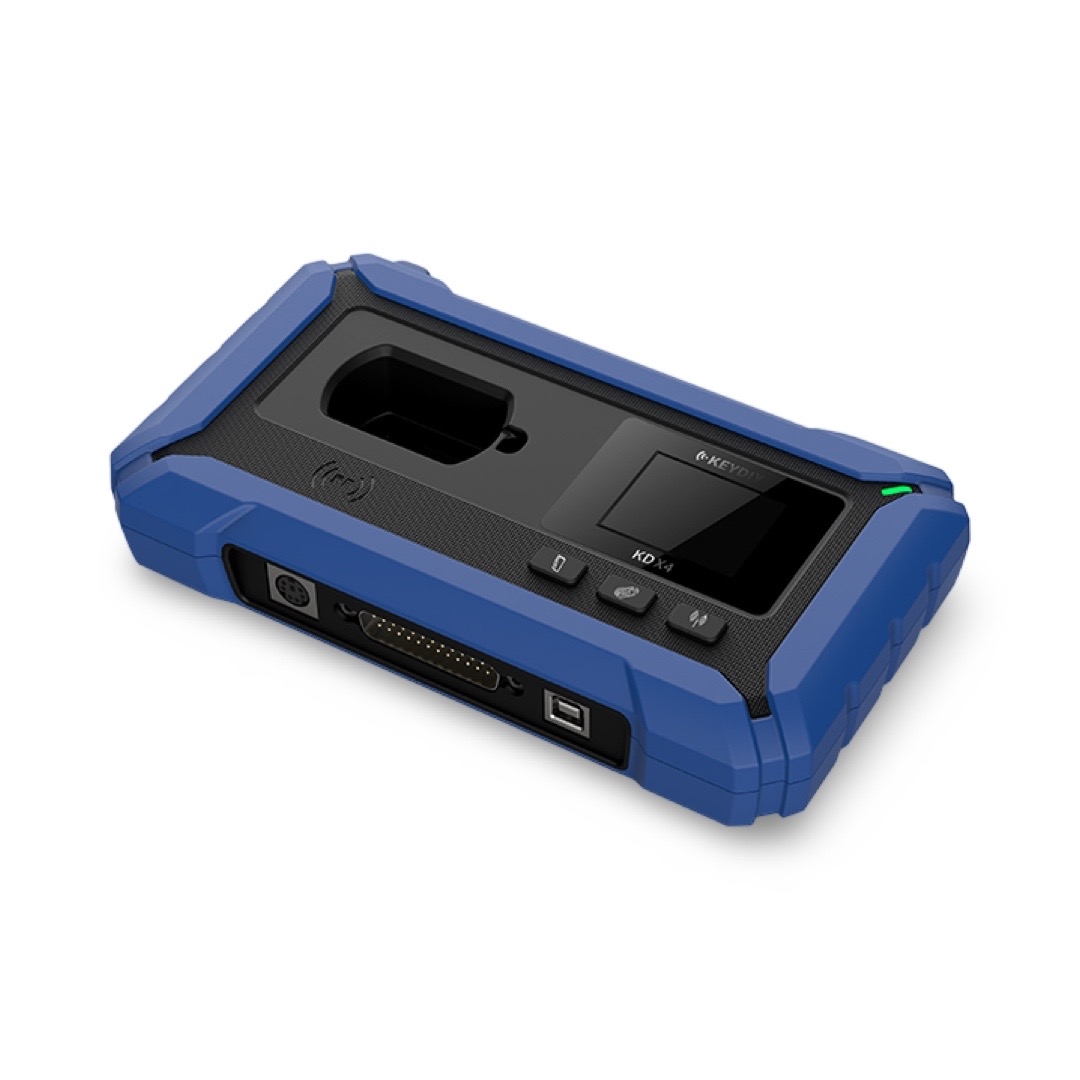

- USB Interface:
- Used for charging or connecting to mobile phones or PC terminals via a wired connection.
- Programmer Interface:
- Used to read data from Volkswagen MQB dashboards, Audi dashboards, BCM data, and various octagonal chip EEPROMs.
- Wired Programming Interface:
- Used for KD wired remote generation, unlocking original keys, detecting remote battery voltage, and leakage detection.
- Collecting Antenna:
- Collects car ignition data, tests ignition coils, performs chip simulation, and other functions.
- External Acquisition Antenna Interface:
- Used for collecting car ignition data, ignition coil detection, chip simulation, and similar functions.
- Toyota Adapter Cable Interface:
- Used for Toyota/Lexus smart key all-key-lost scenarios.
- OBD Main Cable Interface:
- Connects the external OBD II cable to the car.
- Works with the Mobile KD App to enable programming functions.
