Note: MQB Function Needs To Be Activated From The App
Manufacturer: Keydiy
Condition: New
KD PROG MINI is specially designed for reading dashboard data Support for VW MQB.
Working with KD Mate and KD MAX to add key Can also add for key all lost, it is a necessary tool for locksmiths.

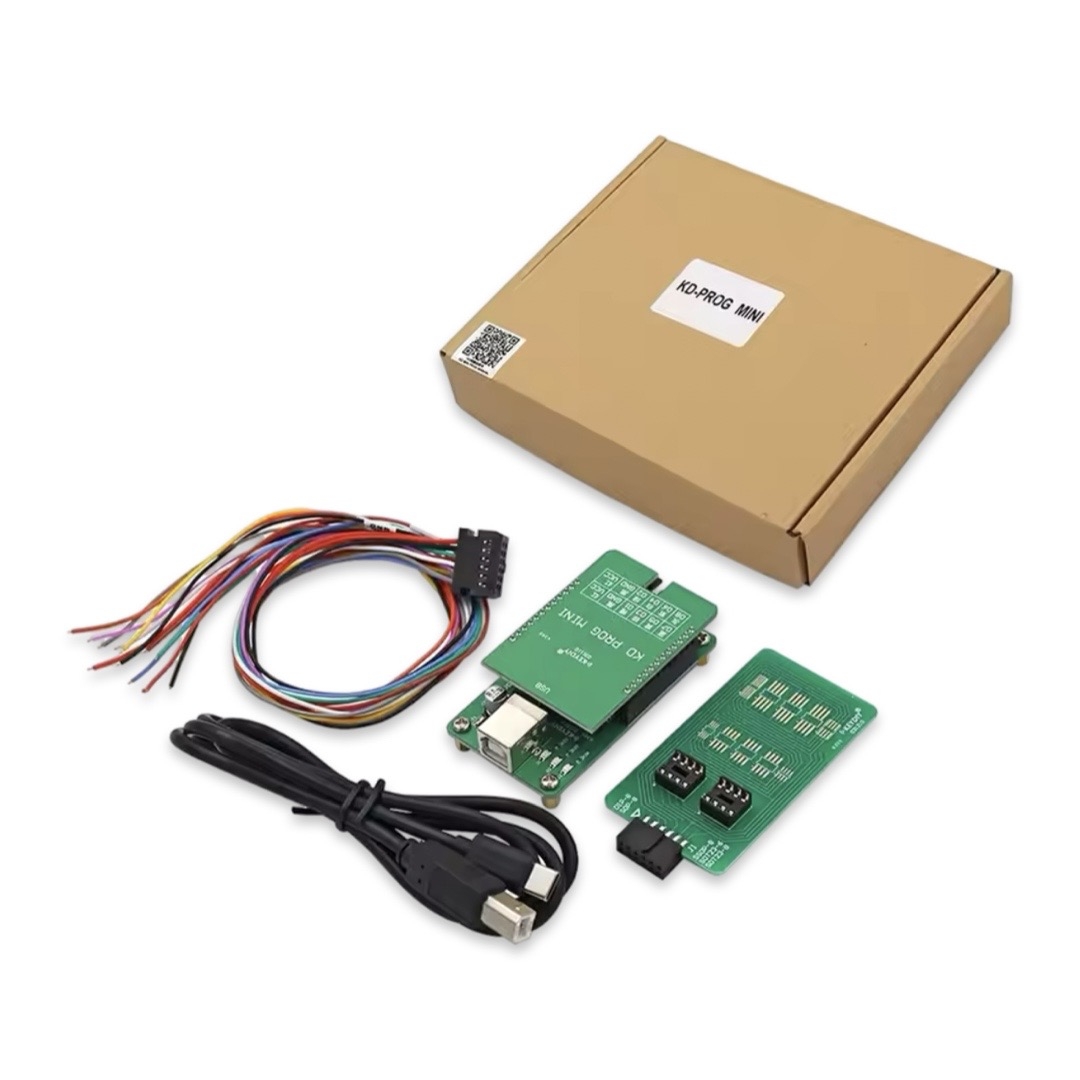

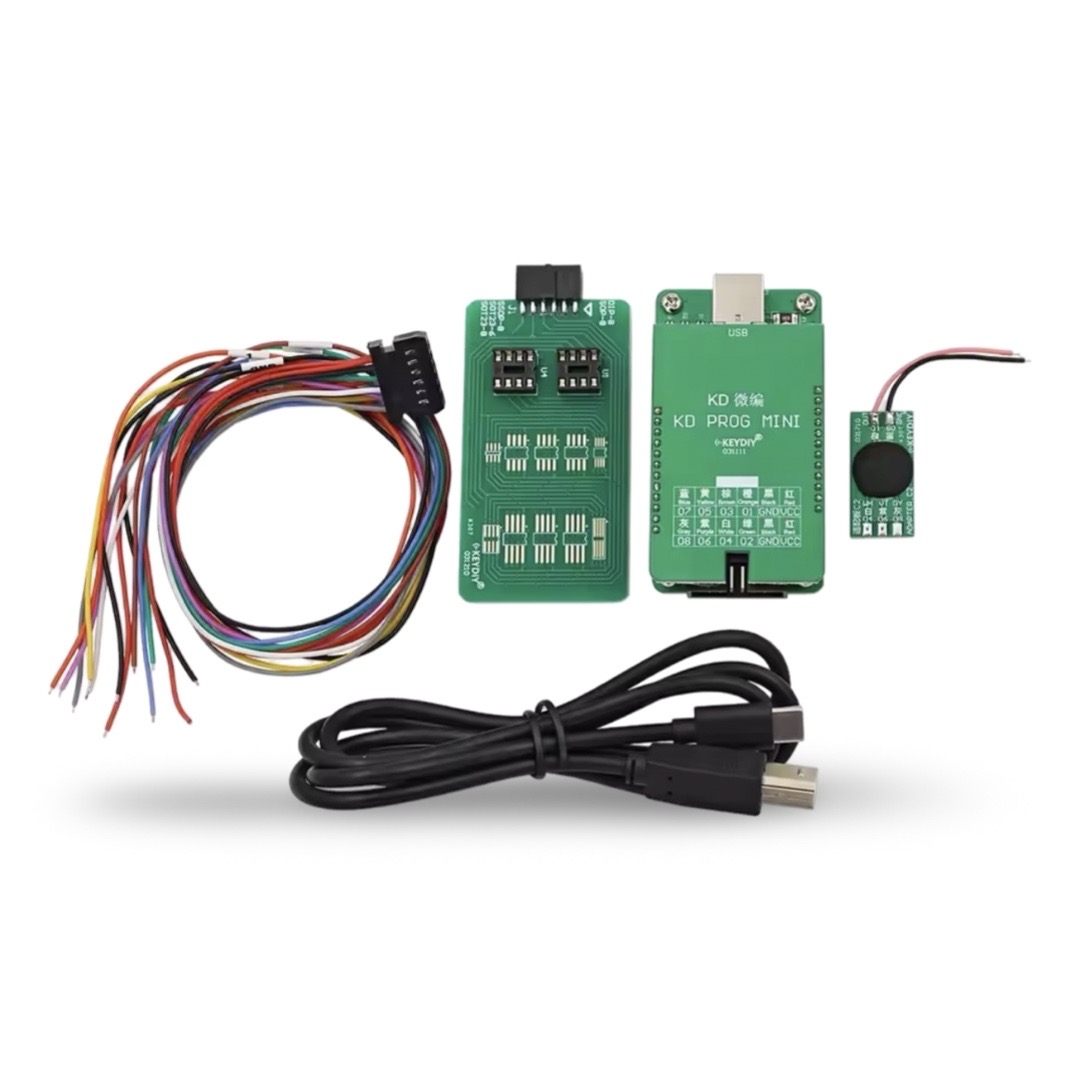

Keydiy KD PROG MINI & C2 Adapter for Reading Dashboard Data Steps of reading data:
1. Select connection diagram according to the dashboard model( Connection diagram can be found in
Mobile KD app-lmmo Programming-KD Mini Prog), weld the cable harness to the corresponding position
of the instrument according to the wiring diagram.

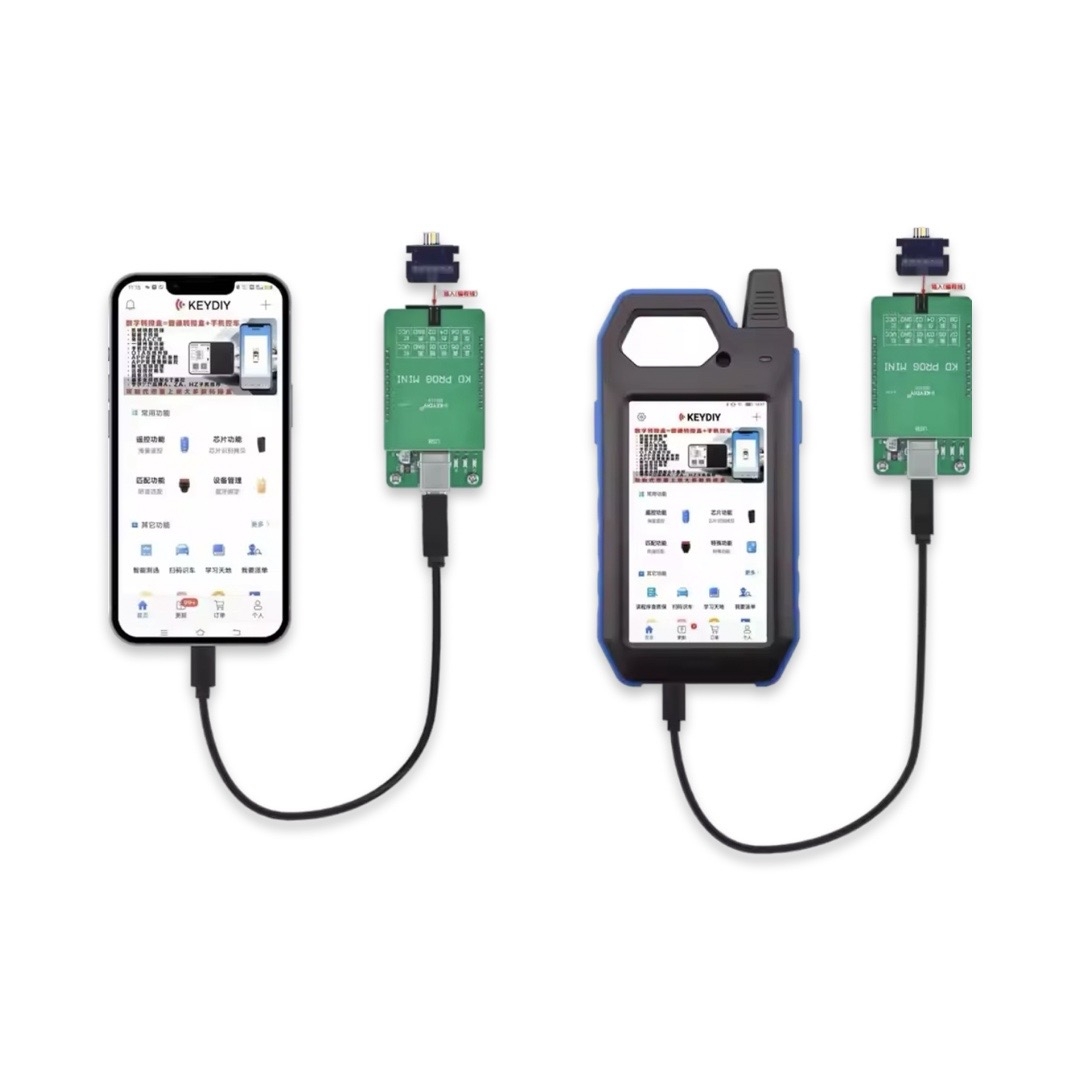

2. Insert the cable harness plug to the KD MINI PROG port, connect KD MINI PROG to KD-MAX( Or
Android phone/tablet which support OTG), see as above pictture.
3. 0pen the Mobile KD app, enter the menu of Immo Programming KD Mini Prog to read data, it may
needs 5-10 seconds.
Notice: Please make sure KD-MAX or the phone do have enough power to avoid reading failure.
Disclaimer: Before use, please carefully read the product manualand strictly follow the steps described
in the manual for installation and use;
If personal or property damage is caused by improper use, our company shall not be held responsible.
