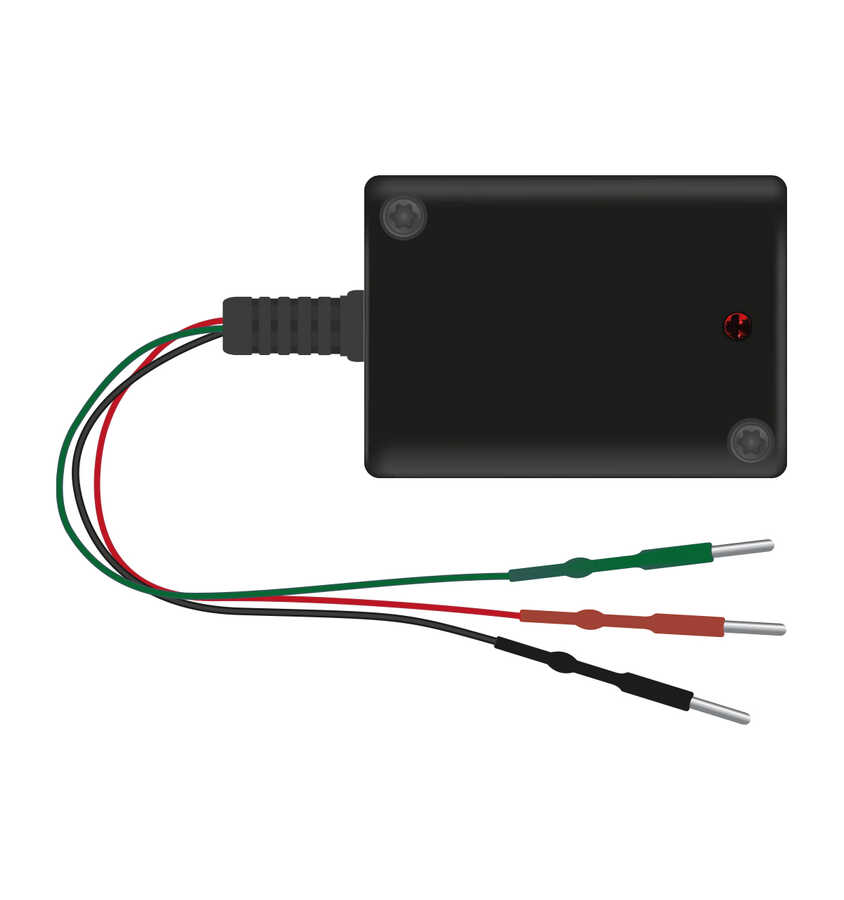

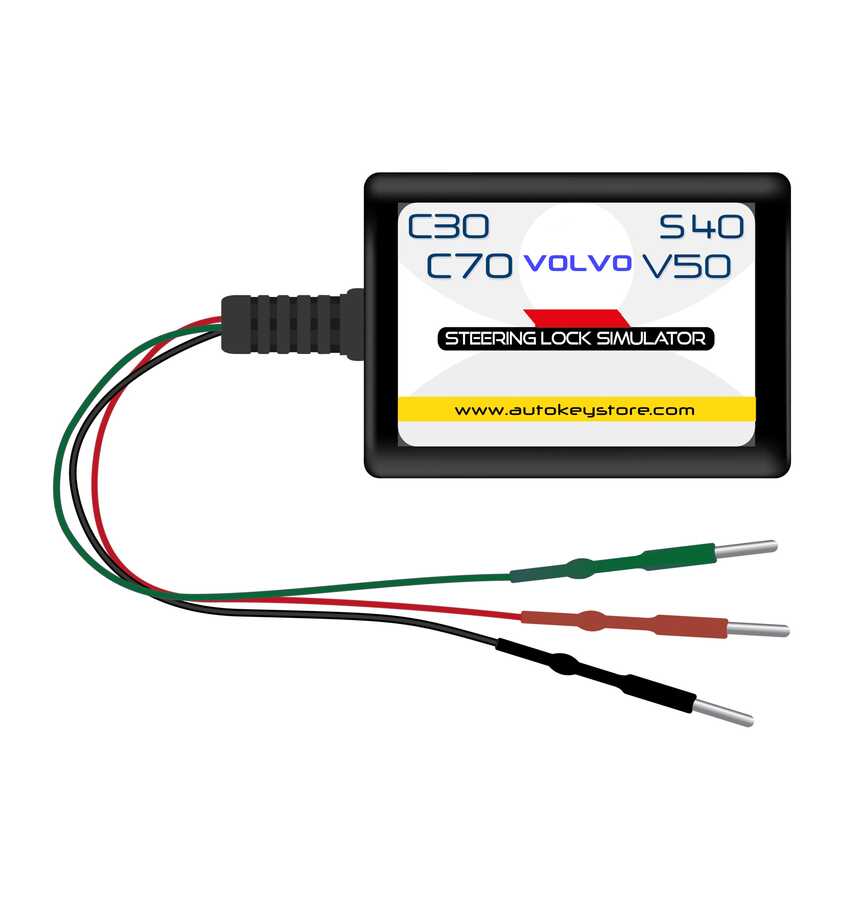

SCL Emulator for C30/S40/C70/V50 VOLVO SCL ESL EMULATOR

You can use S40 Emulator If original SCL board responds to CEM Requests. So the Emulator can grab some data from CEM / SCL communication.

 Instruction:

1) Please short circuit the jumper inside

2) use +12 and gnd in the vehicle's obd cable ( obd 16 pın 12+V ) obd 3/4 pın gnd

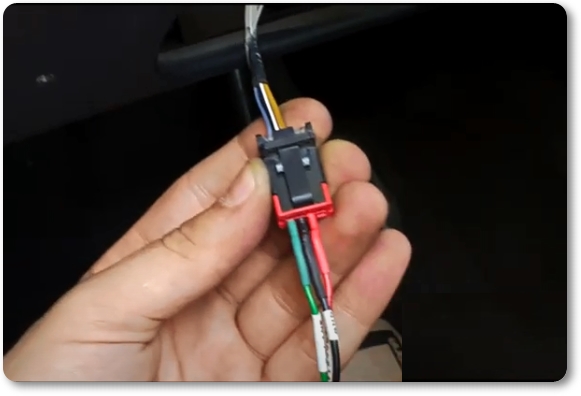

3) Whether the vehicle's original elv plug is plugged in, connect the green pin of the emulator to the 4 pins of the elv cable from the back of the socket and turn on the ignition. ( In this way, you can match the emulator to your vehicle.)

4 ) remove wires and open jumper

5) unplug orginal elv plug and connect emulator

ELV CONNECTOR:

1  NULL

2: YE-BU  + 12v RED

3: BK-WH  - gnd BLACK

4: GY-BU  data GREEN

Orijinal SCL connector pinout:

1: unused

2: + (plus) YE-BU

3: - (minus) BK-WH

4: LIN   GY-BU
