Orange-5 Professional Programmer All Cables & Adapters with Immo Software

Product Code : DSK2044
825.00 EUR
Show More Scorpio-LK
Show More Scorpio-LK
Like

Out Of Stock

Notify me when its in stock
Add to List Recommend It Comment Price Alert

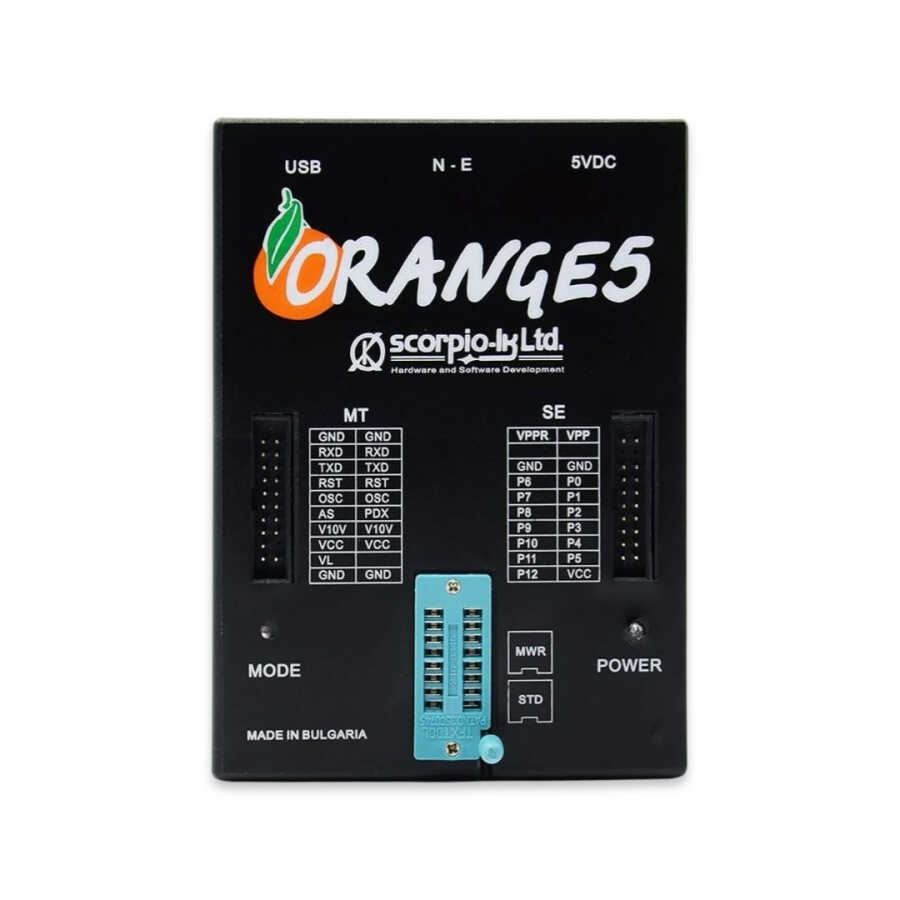

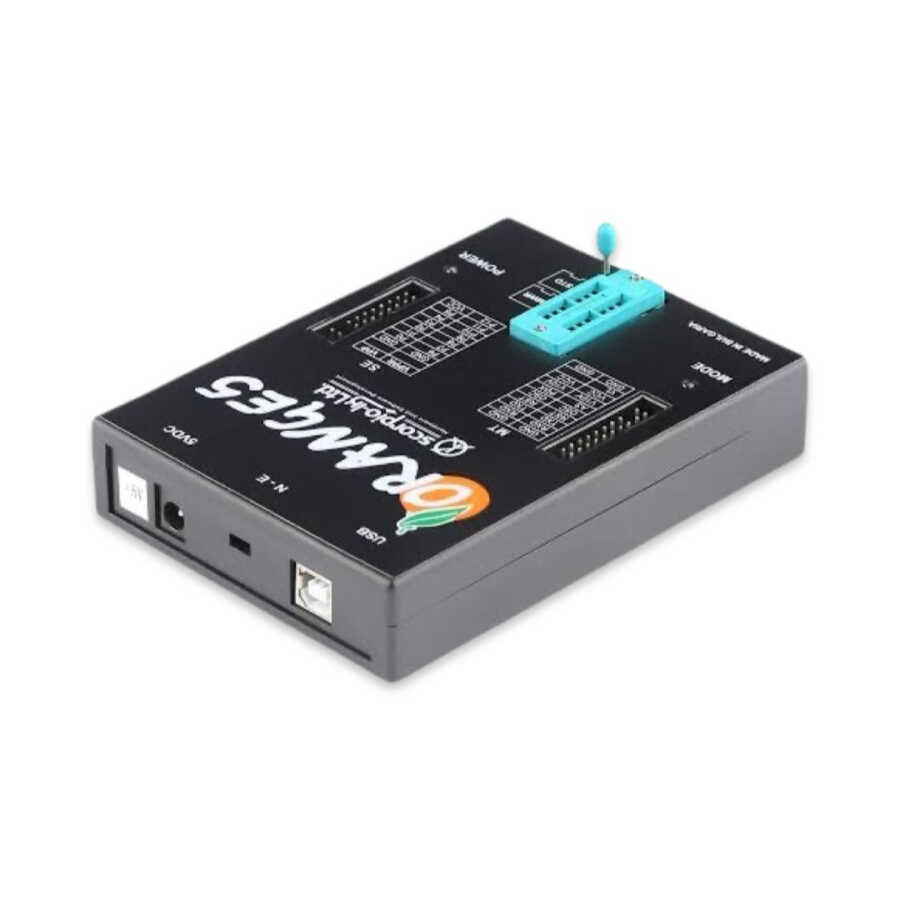

Orange-5 Programmer
Is a professional general purpose programming device for memory and microcontrollers. Unique feature of the current series programmers is built-in macrolanguage for writing down protocols, which gives fast and easy capability to add new types of ICs, precisely meeting manufacturers' requirements to read/write algorithms.

Hardware Features :
Universal easy to plug panel ZIF16 for EEPROMs
Control of contacts in the sockets
Two expansions sockets (MT & SE)
Protection against overcurrent
Overload voltage protection
Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V), additional static 10V for microcontrollers.
High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)
Wave cycle generator with frequency ( up to 24 Mhz) and out voltage(2.0...5.0V) adjustment
Capability of functional emulation of class CDC USB devices
Built-in 32-bit virtual machine
Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)

Download:

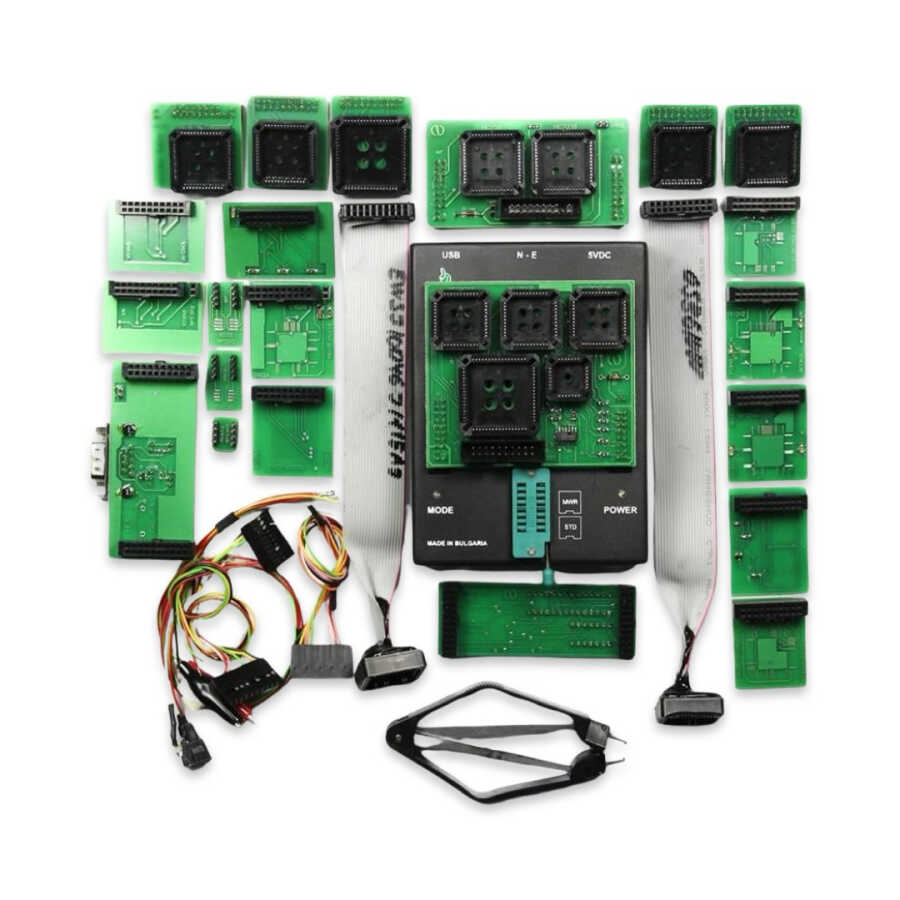

Included Adapters:
SOIC8/DIP8 Expert adapter
SOIC8_14_93Cxx adapter
SSOP8/DIP8
Lead with clips SOIC8 50
Adapter MDA206X/O5
Adapter 05L28/05B
Adapter 908AS60/AZ60 QFP64
Adapter 68HC(7)05P3/E6
Adapter 05B/X_705B/X QFP64 V2
Adapter11PA8/11E9 QFP64
Adapter 68HC05H12
Adapter 68HC11EA9
Adapter 908AS60
Adapter9S12Dxx
Adapter 912Dxx
Adapter 9S12X
Adapter 912B32 QFP80
Adapter 68HC11F1
Adapter 68HC11L6
Adapter 68HC11KA4
Lead 05B6 WDT VW immo incircuit
Lead 11E9(20) with power
Lead forEWS3 mask 0D46J
Lead 11KA4 with power
Lead 912 (9S12) incircuit
Lead 908(08) incircuit
Lead 705E6incircuit
Adapter TMS374C003A
PLCC Extractor
Adapter 68HC11KA4 PLCC68
Adapter NDM457
Adapter NAND FLASH
Adapter 908JL
Adapter PCF7941
Adapter MSP430F
Adapter 9S12XE
Adapter SPI Flash 25Fxx (in SOIC8/16 body)
Orange-5 box renewal kit
+Immo HPX Software
Weight(Kg)
2
