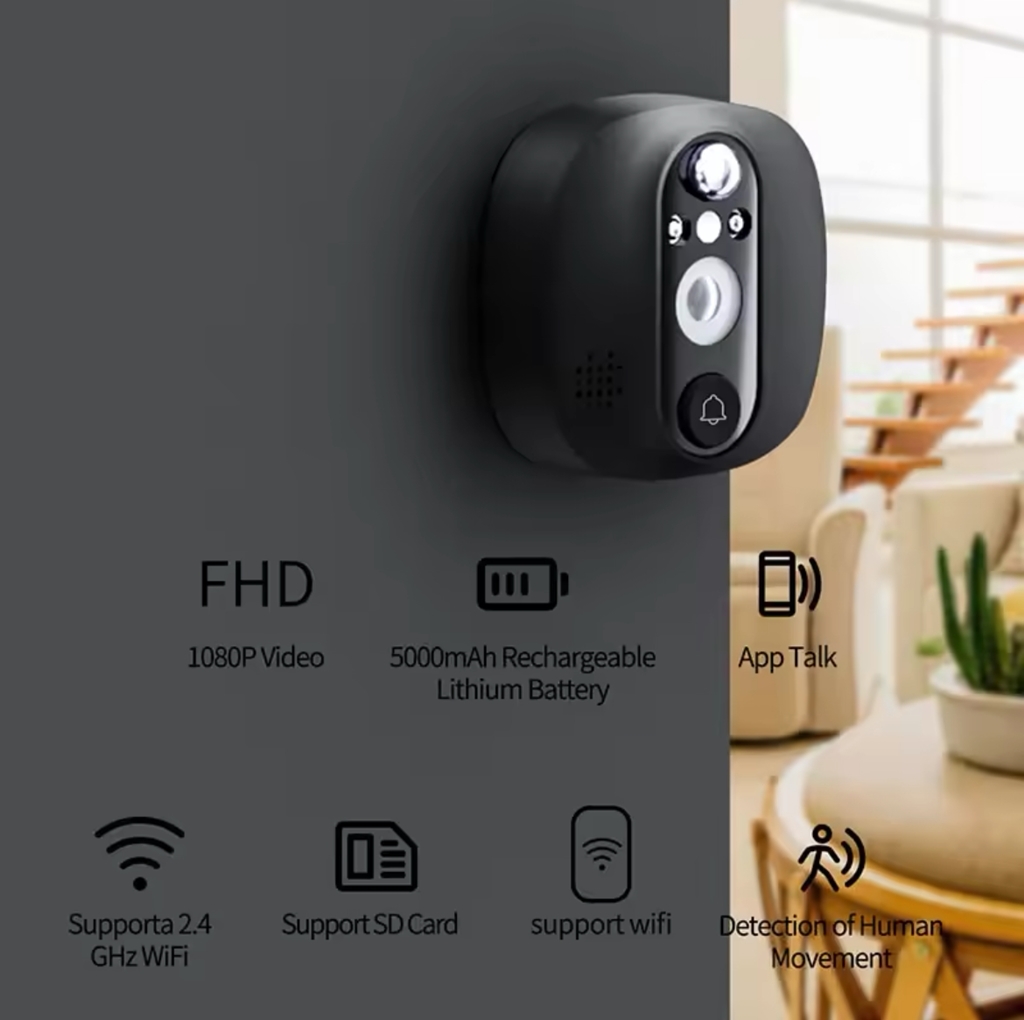

Our equipment is installed at the peephole position on the door to replace the optical door viewer, integrating the peephole viewer, visual doorbell, and safety camera. Solve the problem of the elderly and children not being able to see outside the door, and prevent safety accidents from happening. It has a built-in PIR function and can automatically take or record photos outside the door. It also has WiFi function, which allows for remote visual intercom and remote monitoring. And supports Alexa Echo Show and Google Home.
Application program
1. Graffiti intelligence;
2. Smart life;
Product features:
1. Support Alexa Echo Show and Google Home;
2. Supports SD cards with a maximum memory of 128GB;
3. Support APP remote wake-up function and Cloud storage (Cloud storage paid use);
4. Built in speaker and microphone support remote two-way voice;
5.5000mah polymer rechargeable lithium battery with low power consumption and long lifespan;
6.850nm high-power infrared light compensation night vision, with a night vision illumination distance of up to 5 meters;
7. The doorbell can be connected to the graffiti app and smart life app through 2.4g WIFI;
8. Type-C interface charging;
Graffiti WiFi Visual Doorbell Parameters
Main control chip: Junzheng T31
Sensor device: 1080P COMS sensor
Lens: 4G wide angle 2.2mm Lens screen: 4.3
Inches IPS/480 * 272
Battery capacity: 5000mah (built-in)
Perspective: 167 degrees diagonally/138 degrees horizontally
Video stream: 1920 * 1080/15fps
CMOS performance: supports automatic white balance, automatic gain control, and automatic backlight compensation
System: Lite OS
Standby time: About 6 months (wake up 10 times a day, 30 seconds each time)
Day night conversion: automatic switching of dual filters
Infrared distance: 850nm infrared, effective distance of 5m
Network configuration method: QR code distribution network
PIR human detection: supports PIR detection wake-up
Standby power consumption: 220uA
Working power consumption: 1.5W
Audio encoding standard: WAV audio
Input/output: -42dB microphone/1 built-in speaker
Video recording mode: automatic recording+event recording
Wi Fi: 2.4GHz
Network protocols: TCP/IP, HTTP, TCP, UDP, SMTP, DHCP, DNS, P2P
Wireless protocol: 2.4GHz WIFI 802.11b/g/n wireless network passive
Human infrared detection: supported
Adaptive bit rate: supported
Bidirectional intercom: supports full duplex real-time call sleep
Time: 15S, 30S, 60S/adjustable
Voice call: supported
Remote wake-up: supported
PIR wake-up: supported
Mobile client: ios11.0, android6.0 or above
Power: 5000mAh/18.5Wh soft pack lithium battery (built-in)
Working temperature: -10 ℃~+50 ℃
Working humidity: ≤ 80% RH
Doodle visual cat's eye doorbell

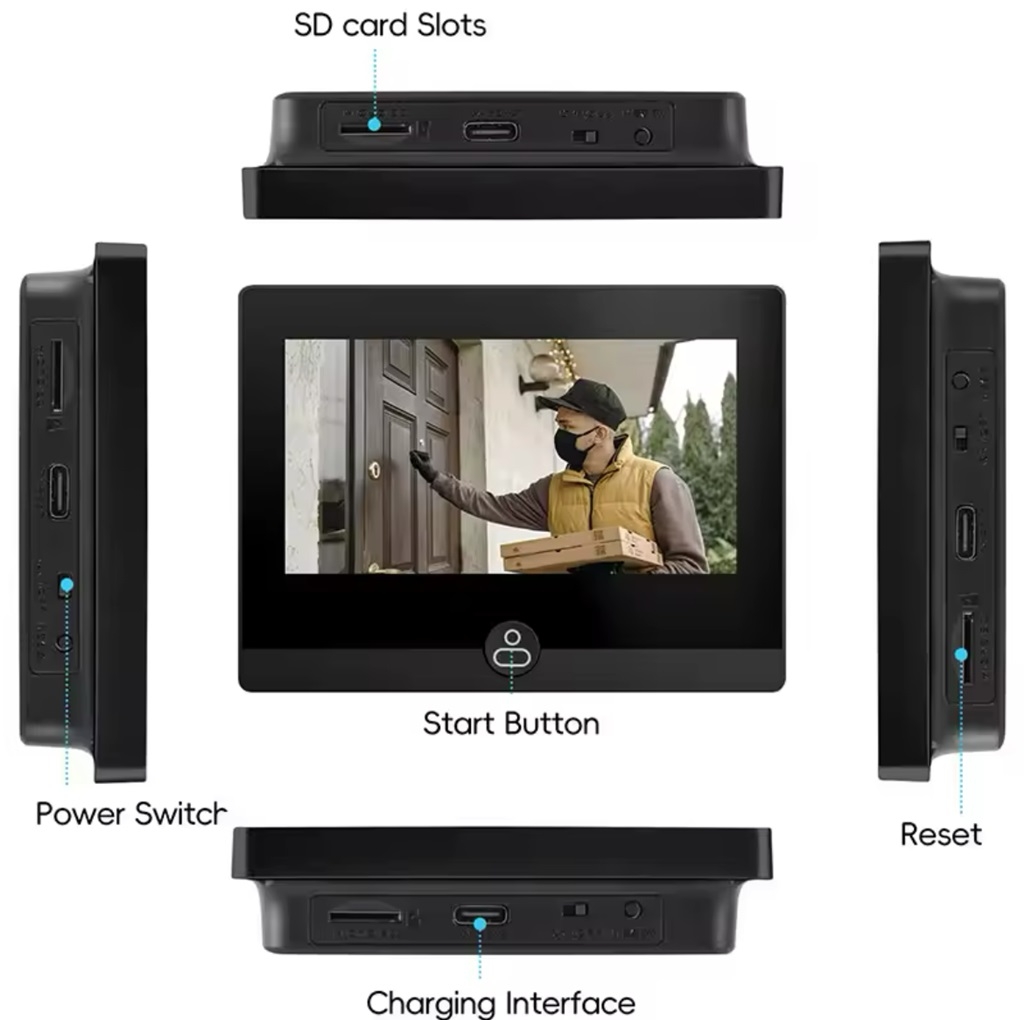

In sleep mode, press the host button to watch the door.

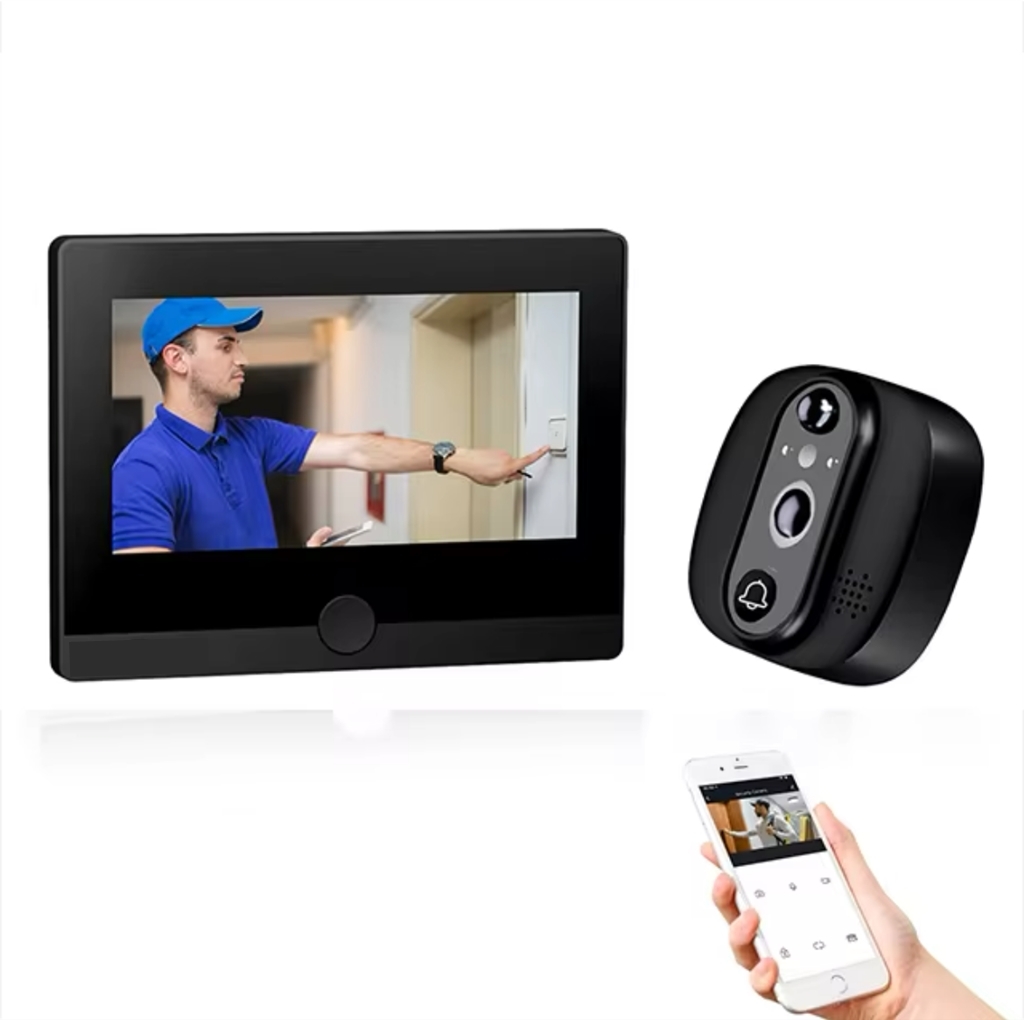

4.3 inch display screen, supporting Alexa and Google Home
